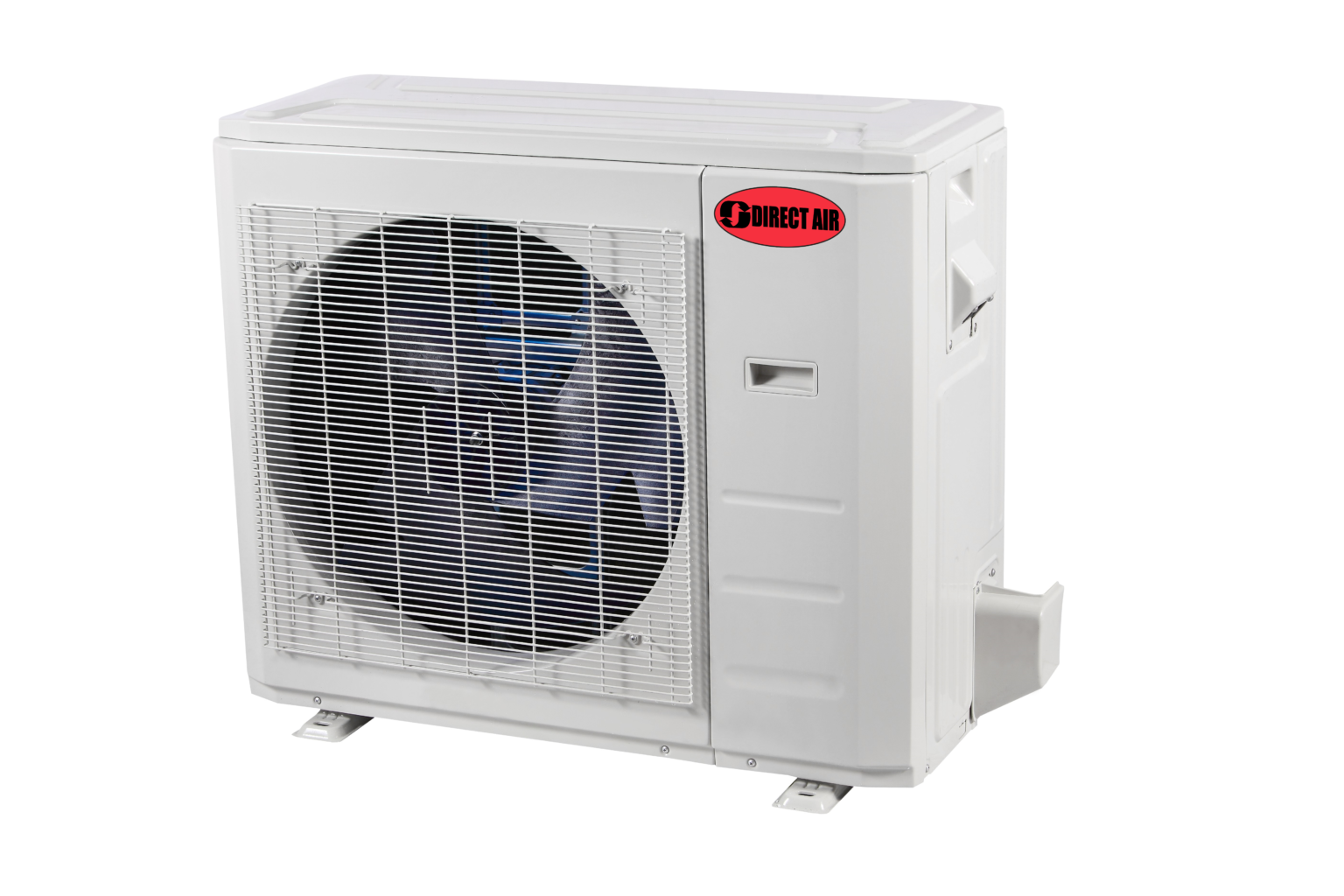

2 ton, 20 SEER 24V heatpump condensing unit 24 000 BTU, Inverter
Model: DIRM-24MAGICPRO20-OU
Warranty
10 years on parts, 1 year on labor.
Description
Direct Air Magic Pro System 20 SEER 24V heatpump condensing unit 24 000 BTU.
Direct Air Magic Pro heat pumps can be matched with the Magic Pro System air handler, or an existing furnace and evaporator coil, saving you and your contractor time and money. lts compact size is designed to fit any unique home or business exterior. Its adjustable inverter modulates according to the actual needs of the living space, thus reducing energy consumption and also the noise level of the indoor and outdoor units.
Our inverter central system provides installation flexibility, extreme energy efficiency, is exceptionally quiet, and just might be the most compact system on the market.
• Up to 20 SEER and 12 HSPF
• Dual-fuel capable when matched with a gas furnace
and evaporator.
• Superior low ambient heat output, 100% output at
-15°C with a COP up to 2.0, 75% output at -25°C
(model dependent)
and much, much more, while not compromising on comfort.
FEATURES AND BENEFITS
• Up to 20 SEER and 12 HSPF
• Available in 2-, 2.5-, 3-, and 4-ton models
• Supports heat pump and dual-fuel heating capabilities
• Superior low ambient heat output: 100% output at -15°C with COP up to 2 and 75% output at -25°C
• User-customizable set point for heat pump to auxiliary heat (gas or electric) change over temperatures
• Reduced replacement installation cost by using existing refrigerant lines and control wiring
• Advanced inverter control
• Intelligent diagnostics and adaptive control system
Specifications
| Family | MAGICPRO |
|---|---|
| Outdoor Model | DIRM-24MAGICPRO20-OU |
| Indoor Model | DIRM-24MAGICPRO20-AH, DIRM-24MAGICPRO20-COIL |
| AHRI | 207706564 212101619 |
| Capacity | 2 Ton |
| SEER | 20 |
| Compressor Type | Inverter |
| Cooling Operates down to: | -30 °C |
| Heating Operates down to: | -35°C |
| Refrigerant Type | R - 410 |
| Electrical Specification | 208/230V, 1 Ph, 60Hz |
| Noise Level | 64 |
| Product Depth | 16.14'' |
| Product Width | 37.25'' |
| Product Height | 32'' |
| Warranty on parts | 10 - Years |
| Energy Star | Yes |
